Battery Combiner Kit Cyrix-i 12-24-120 - Victron Energy

Product information

Product description

The Victron Energy Battery Combiner Kit Cyrix-i 12/24-120 is a bidirectional voltage-sensitive relay. It is therefore used to charge an additional battery.

Intelligent battery monitoring

The Cyrix's software does more than just switch on and off with a fixed delay based on the battery voltage. The Cyrix 'looks' at the general trend (voltage rise or fall) and only switches a previous switch if the trend has been reversed for a certain period. The time delay then depends on the voltage deviation from the trend.

Parallel emergency function

An emergency start button can be connected to the "start assist" connection if necessary. The relay switches on for 30 seconds after the "starting aid" is temporarily connected to the positive of the battery. Alternatively, a parallel connection switch can be used to switch on the relay as long as the switch remains closed.

Easy to install

There is no need to cut any wiring that could void any manufacturer's warranty on your boat or vehicle.

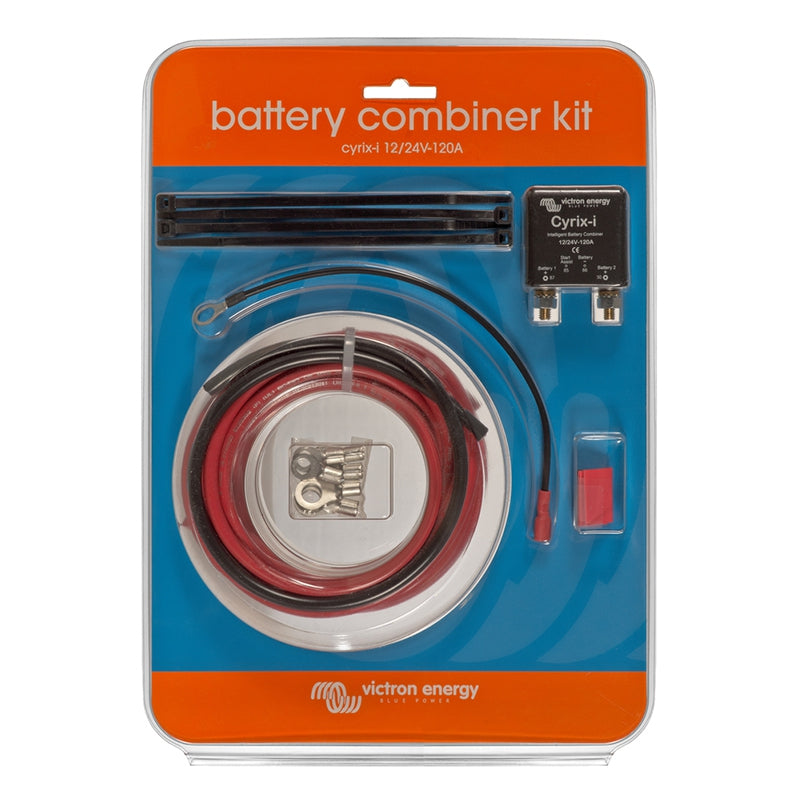

Wiring and connection shoes included

• 6m red wire 10mm2
• 0.5m black wire 10mm2
• 0.2m black wire 1.5mm2 with an M8 cable lug on one side and a 6.3mm flat cable lug on the other side
• 2 M8 insulated cable lugs
• 4 M6 insulated cable lugs
• 4 150mm cable ties

Product specifications

Continuous current: 120A
Maximum alternator rating: 150A
Voltage range: 12.24V
Connection voltage (delay approx. 10 minutes): 13/26V
Connection voltage (delay approx. 4 seconds): 13.8V / 27.6V
Termination voltage (delay approx. 10 minutes): 12.8V / 25.6V
Termination voltage (delay approx. 4 seconds): 11.8V / 23.6V
Overvoltage shutdown: 16V / 32V
Current consumption open: <4 mA
Emergency start: Yes, 30s
Protection class: IP54
