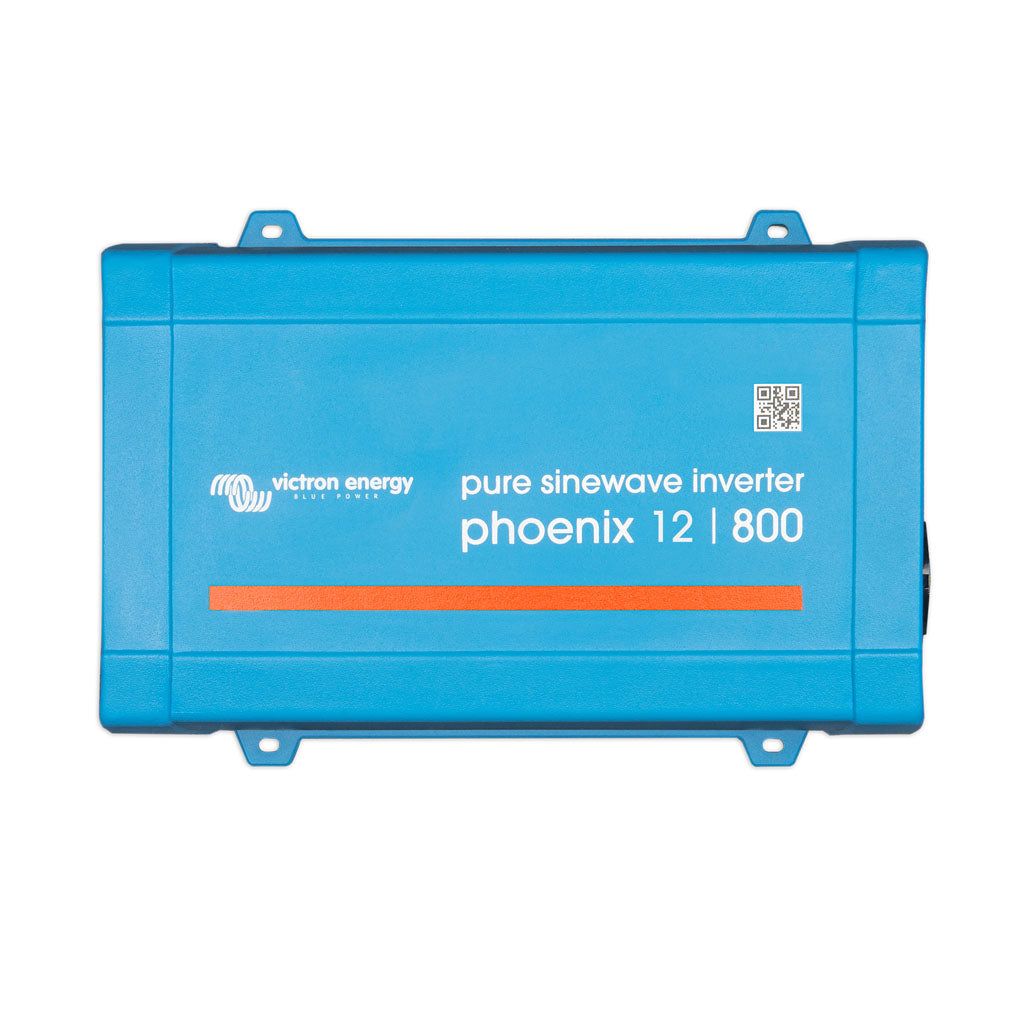

Inverter 800W 12/230V Phoenix Victron Energy

Product information

Product description

Proven reliability. The full bridge plus toroidal inverter topology have proven their reliability for many years. The inverters are short-circuit proof and protected against overheating, regardless of whether this is caused by overload or high ambient temperature.

High start-up power

Required to start loads such as power converters for LED lamps, halogen lamps or power tools

ECO mode

In ECO mode, the inverter switches to standby when the load drops below a preset value (min load: 15W). As soon as it is in standby, the inverter is switched on for a short time (adjustable, standard every 2.5 seconds). If the load exceeds a preset level, the inverter remains on.

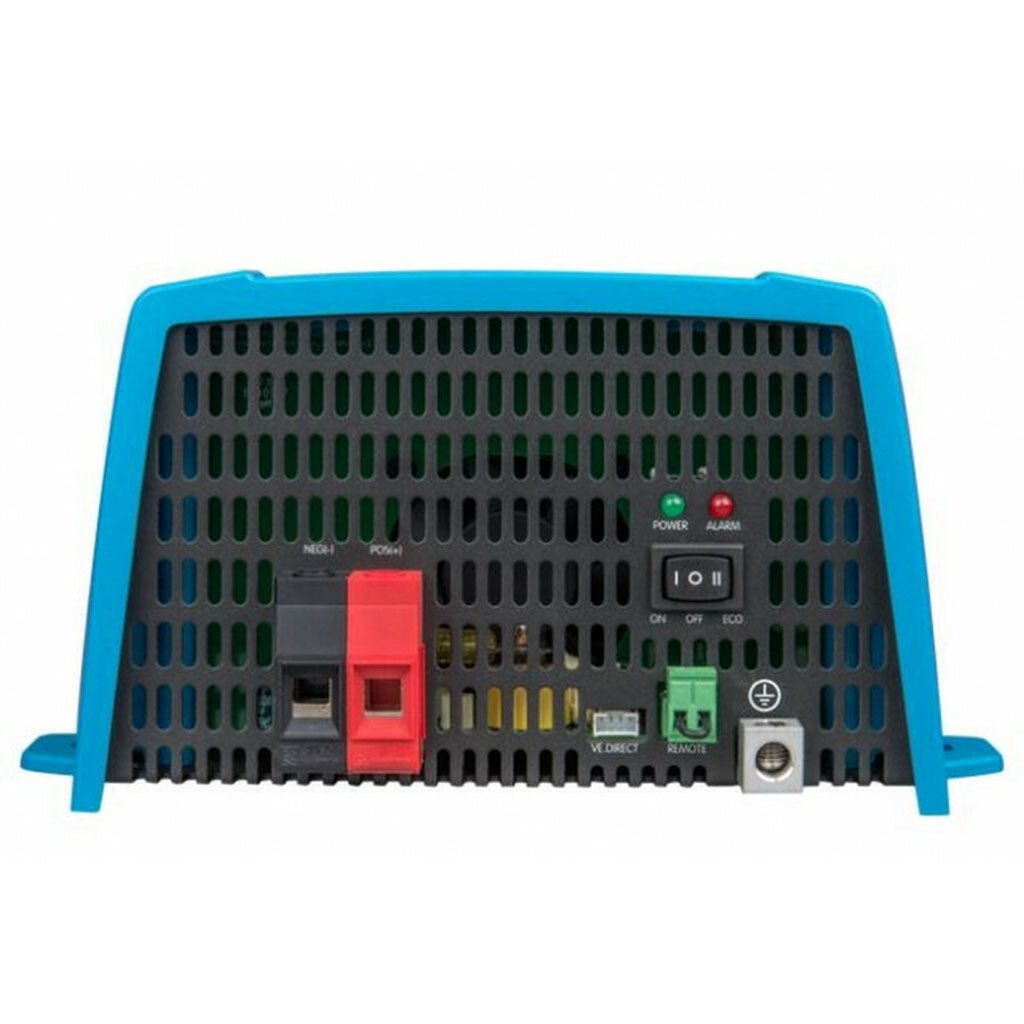

Remote on/off

A remote on/off switch can be connected to a two-pin plug or between the positive terminal of the battery and the left contact of the two-pin plug.

Screw terminals

No special tools required for installation.

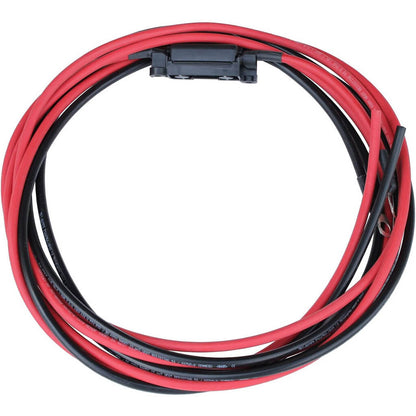

Cable set and socket

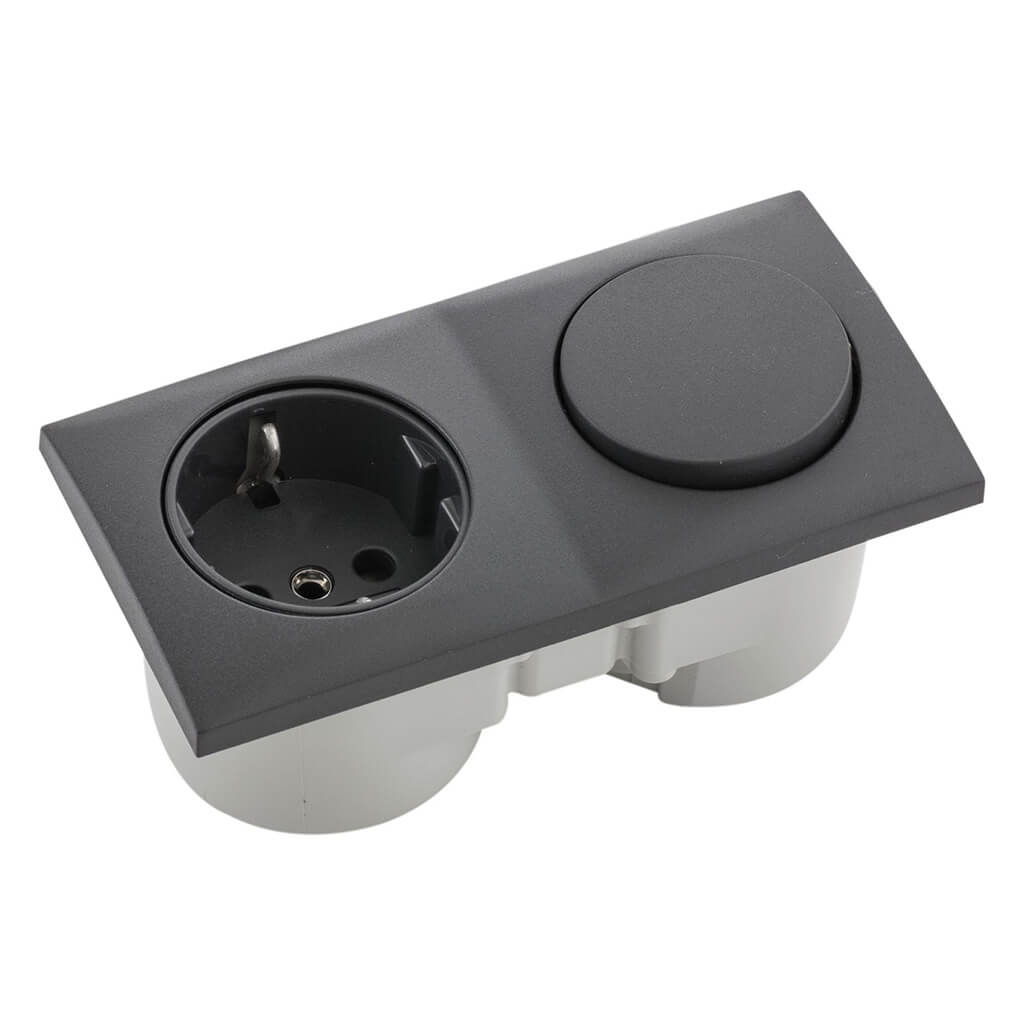

The set is available with a matching 1.5 meter cable set with fuse holder, fuse and M8 cable lugs to connect directly to your battery. If you want to hide the inverter under a chair or in a cupboard, we have put together a set with a socket and switch with which you can remotely turn the inverter off and on. This set consists of a socket, changeover switch, mounting frame and is supplied with a 1.5 meter cable with a 230 volt plug that goes directly into the inverter.

VE.Direct communication port

The VE.Direct port can be connected to:

• a computer (VE.Direct to USB interface cable required)
• Apple and Android smartphones, tablets, MacBooks and other devices ('VE.Direct Bluetooth Smart dongle' required)

Fully configurable:

• Switch and reset levels low battery alarm
• Shutdown and restart levels low battery voltage alarm
• Dynamic cut-off: depending on the load cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode detection level

Monitoring:

• Input and output voltage, % load and alarms

Product specifications

Model: Phoenix 12/800 Victron Energy
Type: Pure sinus
Continuous power at 25°C: 800VA
Continuous power at 25°C / 40°C: 650 / 560 Watt
Peak power: 1500 Watts
AC voltage: 230V/AC
System voltage: 12 Volts
Undervoltage protection: 9.3 Volt (adjustable)
No-load power: 6.5 Watts
Operating temperature: -40°C to +65°C
Connection terminals: Screw terminals
Maximum cable cross-section: 25mm2
Standard AC outputs: 230V: Schuko (CEE 7/4)
Weight: 5.5kg
Dimensions: 105x216x305mm
