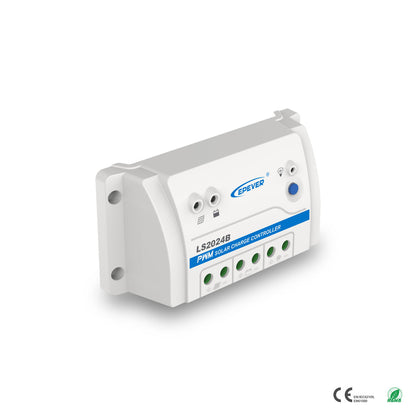

Charge controller PWM 20A
Charge controller PWM 20A
Regular price
€59,95
Regular price
Sale price
€59,95
Unit price
per
Tax included.
With the 20A PWM charge controller you keep your battery in top condition thanks to smart charging algorithms.
✓ Bulk, absoption and float loading
✓ Stops automatically when the battery is full
✓ Automatically switches between 12/24V
✓ Low power consumption
✓ Suitable for solar panels 12V/240W, 24V/480W
Op voorraad - 1-2 werkdagen levertijd
Couldn't load pickup availability
Gratis bezorging vanaf € 75,- Snel en veilig betalen Klanten geven vctrade.nl een 4,9/5 14 dagen retour
Product information
Product description
- Low-priced PWM controller.
- Internal temperature sensor.
- Three-stage battery charging (bulk, absorption, float).
- Protected against overcurrent.
- Protected against short circuit.
- Protected against reverse polarity connection of the solar panels and/or battery.
- With low load voltage disconnect output.

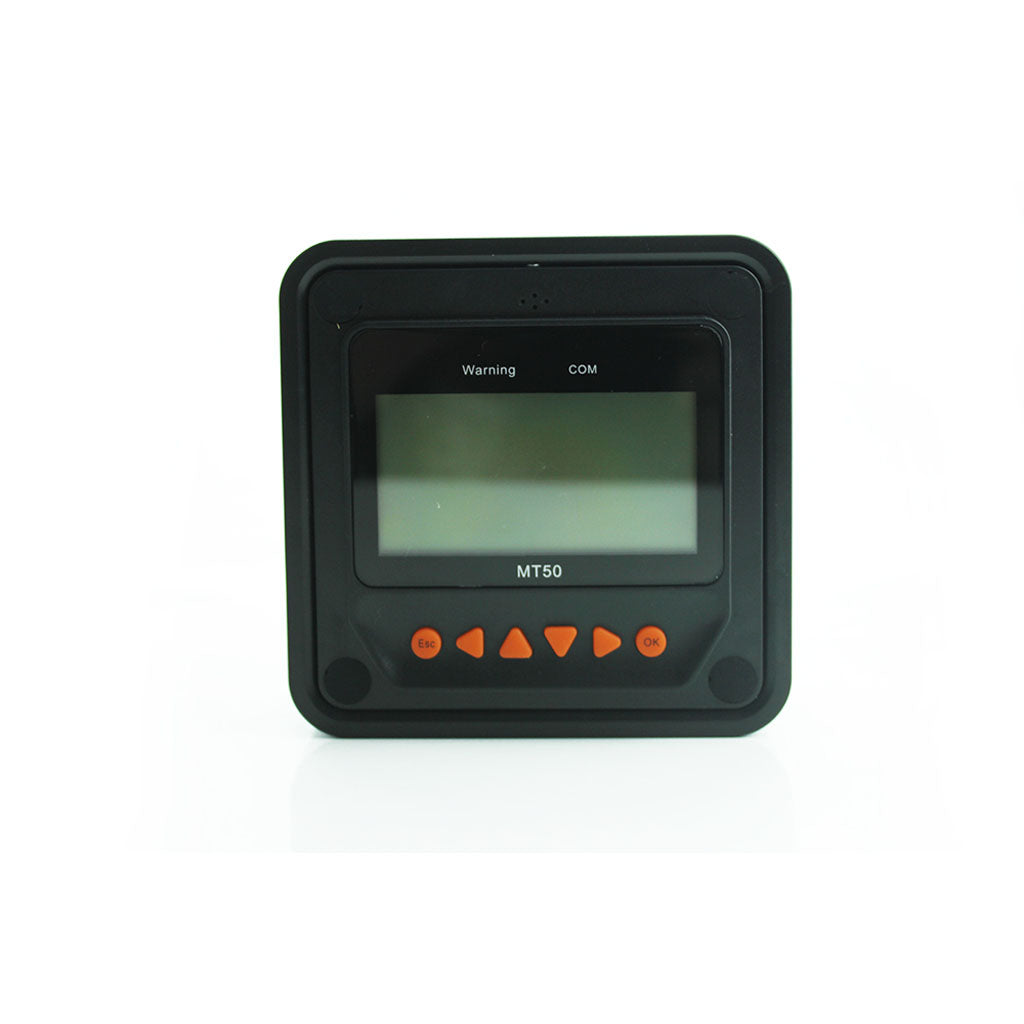

- Optional remote display (20A model only).
- Automatic recognition of the battery voltage 12/24V
Product specifications
System voltage: 12/24 Volt
Nominal charging current: 20A
Nominal PV power: 12V/240W, 24V/480W
Maximum PV no-load voltage: 28V/55V
Communication: RS458
Dimensions: 160x81 x48mm
Weight: 0.3kg
Operating temperature: -35 to +50°C
Warranty: 2 years
